Installing SIFT Forensics on Ubuntu 24.04.2 LTS: The Complete VirtualBox Guide

Transform Your System into a Professional Digital Forensics Workstation Using Cast and SaltStack

Digital forensics has never been more critical in today's cybersecurity landscape. Whether you're investigating incidents, analyzing malware, or conducting digital evidence recovery, having the right tools at your fingertips can make the difference between a successful investigation and a dead end. In this comprehensive guide, we'll walk through setting up the SANS Investigative Forensic Toolkit (SIFT) on Ubuntu 24.04.2 LTS using VirtualBox and the modern Cast deployment method.

---

Step 1: Installing VirtualBox on Windows

First, we'll set up VirtualBox on your Windows machine to create our forensics environment.

Download VirtualBox:

1. Navigate to the official VirtualBox website: https://www.virtualbox.org/wiki/Downloads

2. Click "Windows hosts" to download the latest VirtualBox installer

3. Also download the "VirtualBox Extension Pack" for additional features

Install VirtualBox:

1. Run the installer (VirtualBox-7.2.x-Win.exe) as Administrator

2. Accept the license agreement and choose installation directory

3. Select components to install:

   • VirtualBox Application (required)

   • VirtualBox USB support (recommended)

   • VirtualBox Networking (required)

   • VirtualBox Python 2.x support (optional)

4. Install the Extension Pack:

   • Double-click the downloaded .vbox-extpack file

   • Follow prompts to install additional features

Verify Installation:

• Launch VirtualBox from Start Menu

• Check version: Help → About VirtualBox

---

Step 2: Downloading Ubuntu 24.04.2 LTS ISO

Next, we need to obtain the Ubuntu 24.02 LTS installation image for our virtual machine.

Download the ISO:

1. Navigate to the official Ubuntu releases page: https://old-releases.ubuntu.com/releases/24.04.2/

2. Download ubuntu-24.04-desktop-amd64.iso (approximately 4.5GB)

3. Verify download integrity (optional but recommended):

   • Download the SHA256SUMS file

   • (optional) Use PowerShell to verify:

# In PowerShell, navigate to Downloads folder
cd $env:USERPROFILE\Downloads

# Check file hash
Get-FileHash ubuntu-24.04-desktop-amd64.iso -Algorithm SHA256

Tip: Create a dedicated folder like C:\ISOs\ to organize your installation media.

Step 3: Creating Ubuntu VM in VirtualBox

Now we'll create a robust virtual machine environment optimized for forensics work on Windows.

Create the Virtual Machine:

1. Launch VirtualBox from Windows Start Menu

2. Create New VM:

   • Click "New" button

   • Name: Sift-Ubuntu (can name whatever)

   • Type: Linux

   • Version: Ubuntu (64-bit)

   • Click "Next"

3. Configure VM Resources :

   • Memory: 8192 MB (8GB minimum, 16GB recommended)

   • Hard Disk: Create virtual hard disk now

   • Hard disk file type: VDI (VirtualBox Disk Image)

   • Storage on physical hard disk: Dynamically allocated

   • File location and size: 100GB

     **Note: These are recommendations and can be lowered

4. Start VM and Install Ubuntu:

   • Click "Start" to boot from the Ubuntu ISO

   • Follow Ubuntu installation process

   • Create user account: forensics (or your preferred username)

   • Enable automatic login for convenience

   • Choose "Minimal installation" to save space initially

---

Step 4: Insert VBox Tools for Installation

VirtualBox Guest Additions are crucial for optimal VM performance and seamless integration.

Install Guest Additions:

1. Prepare the system:

sudo apt update && sudo apt upgrade -y
sudo apt install build-essential dkms linux-headers-$(uname -r) -y

1. Insert Guest Additions CD:

   • In VirtualBox menu: Devices → Insert Guest Additions CD Image

2. Install Guest Additions:

sudo /media/<username>/VBox_GAs_7.x.x/VBoxLinuxAdditions.run

1. Reboot and verify:

sudo reboot

# After reboot, verify installation
lsmod | grep vbox

Enable enhanced features:

• Shared clipboard: Devices → Shared Clipboard → Bidirectional

• Drag and drop: Devices → Drag and Drop → Bidirectional

---

Step 5: Downloading Cast Debian Package from GitHub

Cast is the modern deployment tool for SIFT, replacing the legacy installation methods with a streamlined SaltStack approach. We'll download this on Windows and transfer it to our Ubuntu VM.

Download Cast on Windows:

1. Open web browser and navigate to: https://github.com/ekristen/cast/releases

2. Download the latest Debian package:

   • Look for the latest release (e.g., v0.16.25)

   • Download cast-v0.16.25-linux-amd64.deb

   • Save to C:\Downloads\ or your preferred location

3. Alternative download using PowerShell:

# Open PowerShell as Administrator
cd $env:USERPROFILE\Downloads

# Download Cast package
Invoke-WebRequest -Uri "https://github.com/ekristen/cast/releases/download/v0.16.25/cast-v0.16.25-linux-amd64.deb" -OutFile "cast-v0.16.25-linux-amd64.deb"

# Verify download
ls cast_*.deb

Verify the download:

• Check file size (should be around 15-20MB)

• Ensure .deb extension is preserved

---

Step 6: Transfer Package to VM and Install with dpkg -i

Now we'll transfer and install the Cast package in our Ubuntu VM.

Transfer Methods:

Option A: Shared Folders (Recommended)

1. Setup shared folder:

   • VirtualBox menu: Devices → Shared Folders → Shared Folders Settings

   • Add folder containing the Cast package

   • Enable "Auto-mount" and "Read-only"

2. Access shared folder in VM:

cd ~
sudo -s
cp /media/sf_<shared_folder_name>/cast-v0.16.25-linux-amd64.deb .

Option B: Direct download in VM:

cd ~/Downloads
wget https://github.com/ekristen/cast/releases/download/v0.16.25/cast-v0.16.25-linux-amd64.deb

Install Cast:

#Already in sudo -s session

# Install the package
dpkg -i cast-v0.16.25-linux-amd64.deb

# Fix any dependency issues
apt-get install -f

# Verify installation
cast --version
which cast

#exit sudo session
exit

---

Step 7: Run Cast teamdfir/sift-saltstack

Time to deploy SIFT using the Cast tool and SaltStack configuration.

Deploy SIFT:

# Run Cast with SIFT SaltStack configuration
sudo cast teamdfir/sift-saltstack

# The installation will take 15-30 minutes
# You'll see extensive output showing progress

Monitor Installation Progress:

The Cast deployment will:

• Download SaltStack states from the teamdfir/sift-saltstack repository

• Install Salt minion if not present

• Apply all SIFT configurations and packages

• Configure desktop environment and user settings

• Install forensics tools and dependencies

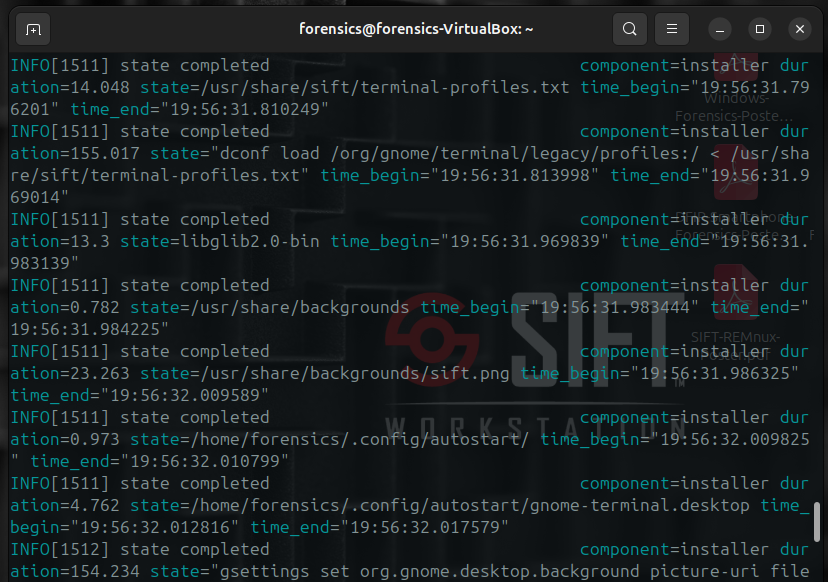

Common Installation Output:

Post-Installation:

# Reboot to ensure all configurations are applied
sudo reboot

**Note: Some tools may not have been installed due to stagnant locations or tool movement by original developers.

If the instalation was successful the background will switch to SIFT Workstation and desktop will have SANS brochures for forensic artifacts.

Digital Forensics Arsenal: 10+ Essential Tools Now at Your Fingertips

Your SIFT installation includes a comprehensive suite of forensics tools:

Memory Analysis:

1. Volatility Framework - Advanced memory dump analysis and malware detection

2. Rekall - Cutting-edge memory forensics with live analysis capabilities

Disk & File System Analysis:

3. The Sleuth Kit (TSK) - Complete disk image analysis toolkit

4. Autopsy - Intuitive graphical interface for disk analysis

5. Guymager - Forensic imaging tool with verification capabilities

Network Forensics:

6. Wireshark - Premier network protocol analyzer

7. NetworkMiner - Network forensics analysis tool

8. tcpdump - Command-line packet analyzer

Timeline & Log Analysis:

9. Plaso (log2timeline) - Super timeline creation and analysis

10. Timeline Explorer - Advanced timeline visualization

Additional Specialized Tools:

11. YARA - Pattern matching engine for malware research

12. ClamAV - Antivirus engine for malware detection

13. Binwalk - Firmware analysis and reverse engineering

14. Foremost - File carving and recovery tool

15. Hashdeep - File integrity verification and comparison

Python Forensics Libraries:

• pytsk3 - Python bindings for The Sleuth Kit

• pefile - PE file analysis library

• python-registry - Windows Registry analysis

• dfvfs - Digital Forensics Virtual File System

---

Outro: Your Forensics Journey Begins Here

Congratulations! You've successfully transformed a standard Ubuntu system into a professional-grade digital forensics workstation. The SIFT toolkit you've installed represents years of development by the digital forensics community and provides the same tools used by professionals worldwide.

Next Steps:

• Practice with sample data before working on real cases

• Create VM snapshots before each investigation

• Keep detailed case notes and maintain chain of custody

• Stay updated by regularly running Cast updates

• Join the community and contribute to the SIFT project

Tips for Forensics Success:

• Always work on copies, never original evidence

• Document every step of your investigation

• Verify tool integrity before each case

• Follow legal and organizational procedures

• Consider pursuing formal forensics training and certifications

Whether you're investigating cybersecurity incidents, conducting malware analysis, or diving into digital evidence recovery, your SIFT workstation is now ready to tackle the challenges ahead. The tools are powerful, but remember - the most important forensics tool is between your ears.

Happy investigating! 🔍

---

Sources and References

Official Documentation:

• SIFT Workstation Documentation

• Cast Installation Tool

• Ubuntu 24.04 LTS Release Notes

SANS Institute Resources:

• SANS Digital Forensics Community

• SIFT Workstation Official Page

VirtualBox Documentation:

• VirtualBox User Manual

• Guest Additions Installation Guide

Additional Learning Resources:

• Digital Forensics Framework (DFF)

• Volatility Foundation

• The Sleuth Kit Documentation

Last updated: August 2025 | Author: Ray Mon | Follow for more cybersecurity content
